SONOFF RM433 remote control with 8 buttons

It’s a nice little remote control with 8 buttons, it is powered with a 12V 27 battery.

You can also buy a base, the remote fits into it by a magnet.




The protocol used is compatible with OpenMQTTGateway modules below:

  • ZgatewayRF (ESP32 or ESP8266 with an RF receiver)
  • ZgatewaySRFB (Sonoff RF Bridge)
Here is the official link:


Now if we take a look to the power consumption of this sensor we can see that:
  • When sending signal 9mA during around 0.5s
  • Sleep current less than 1uA continuously
Duration estimation
See relative comparison into the list of compatible devices
It should last more than 1 year with 20 actions per day.

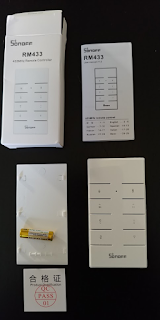

Some pictures:





Power consumption when no action



Base

Back


We can see that the remote is powered by a 12V 27A battery, 12V 23A will not fit into the remote for info.

Remote

Disassembly

Disassembly2

This little remote control is interesting, I retain the following advantages:
  • 8 buttons
  • possibility to attach it to a wall thanks to a dedicated base
  • nice quality
  • seems robust
I recommend it.
